黃銅板←詳情請擊點

Cu:64%~68%；Zn:餘量。具有漂亮色澤、衝製加工性好、延展性優良、適合伸抽、易於電鍍及塗裝。

磷青銅板←詳情請擊點

5191：Sn:5.5~7.5約 6％；Sn+P+CU>99.5%。高強度硬度特質。

5210：Sn:7.0~9.0約 8％；Sn+P+CU>99.7%。耐疲勞及彈性特性佳。

紅銅板←詳情請擊點

P:0.004％以下；Cu:99.90％。具高熱電傳導性、加工性、延展性、耐蝕性及耐候性。

磷青銅(Phosphor Bronze)合金各規格對照表

規格名稱 SPEC	合金編號 Alloy No.	化學成分 Chemical Composition (wt.%)								規格編號 Spec no.
		Cu	Sn	P	Fe	Ni	Pb	Zn	Others
ISO	CuSn 4	Rem.	3.5~4.5	0.01~0.40	≦0.1	≦0.3	≦0.05	≦0.3	----	427
	CuSn 5		4.5~5.5
	CuSn 6		5.5~7.5
	CuSn 8		7.5~9.0
CNS	C5101	Rem.	3.0~5.5	0.03~0.35	----	----	----	----	Cu＋Sn＋P≧99.5	9503 H3112
	C5191		5.5~7.0
	C5212		7.0~9.0
JIS	C5111	Rem.	3.5~4.5	0.03~0.35	----	----	----	----	Cu＋Sn＋P≧99.5	H3110
	C5102		4.5~5.5
	C5191		5.5~7.0
	C5212		7.0~9.0
	C5210		7.0~9.0		≦0.1	----	≦0.05	≦0.2	Cu＋Sn＋P≧99.7	H3130
ASTM	C51100	Rem.	3.5~4.9	0.03~0.35	≦0.1	----	≦0.05	≦0.3	----	B103
	C51000		4.2~5.8
	C51900		5.0~7.0
	C52100		7.0~9.0					≦0.2
DIN	CuSn 4	Rem.	3.5~4.5	0.01~0.35	≦0.1	≦0.3	≦0.05	≦0.3	≦0.2	17662
	CuSn 6		5.5~7.5
	CuSn 8		7.5~8.5
BS	PB101	Rem.	3.5~4.5	0.02~0.40	----	----	≦0.02	≦0.3	----	2870
	PB102		4.5~5.5
	PB103		5.5~7.5

　

銅合金板材厚度公差 (Thickness tolerances for strip):

紅銅 (C1100);黃銅 (C2680)

寬度Width 厚度Thickness	厚度公差Tolerance
	JIS Standard (H3100)				S&T
	≦ 200 mm	≦ 300 mm	≦ 400 mm	≦ 700 mm	≦ 400 mm
over 0.10 mm to 0.15 mm incl.	±0.010 mm	±0.020 mm	±0.020 mm	----	±0.008 mm
over 0.15 mm to 0.25 mm incl.	±0.020 mm	±0.020 mm	±0.020 mm	±0.030 mm	±0.010 mm
over 0.25 mm to 0.35 mm incl.	±0.020 mm	±0.030 mm	±0.030 mm	±0.040 mm	±0.010 mm
over 0.35 mm to 0.50 mm incl.	±0.030 mm	±0.030 mm	±0.040 mm	±0.050 mm	±0.012 mm
over 0.50 mm to 0.80 mm incl.	±0.030 mm	±0.040 mm	±0.050 mm	±0.060 mm	±0.015 mm
over 0.80 mm to 1.20 mm incl.	±0.040 mm	±0.050 mm	±0.060 mm	±0.070 mm	±0.020 mm
over 1.20 mm to 2.00 mm incl.	±0.050 mm	±0.060 mm	±0.070 mm	±0.080 mm	±0.025 mm
over 2.00 mm to 3.00 mm incl.	±0.060 mm	±0.070 mm	±0.080 mm	±0.100 mm	±0.040 mm

磷青銅 (C5191、C5210)

寬度Width 厚度Thickness	厚度公差Tolerance
	JIS Standard (H3100)		S&T
	≦ 400 mm	400 ~ 650 mm	≦ 400 mm
over 0.10 mm to 0.15 mm incl.	±0.010 mm	----	±0.008 mm
over 0.15 mm to 0.25 mm incl.	±0.015 mm	----	±0.010 mm
over 0.25 mm to 0.40 mm incl.	±0.020 mm	----	±0.010 mm
over 0.40 mm to 0.55 mm incl.	±0.025 mm	±0.045 mm	±0.012 mm
over 0.55 mm to 0.70 mm incl.	±0.030 mm	±0.050 mm	±0.015 mm
over 0.70 mm to 0.90 mm incl.	±0.035 mm	±0.060 mm	±0.015 mm
over 0.90 mm to 1.20 mm incl.	±0.040 mm	±0.070 mm	±0.020 mm
over 1.20 mm to 1.50 mm incl.	±0.045 mm	±0.080 mm	±0.025 mm
over 1.50 mm to 2.00 mm incl.	±0.050 mm	±0.090 mm	±0.025 mm

銅合金板材寬度公差 (Width tolerances for strip):

寬度Width 厚度Thickness	厚度公差Tolerance
	JIS Standard (H3100)		S&T
	≦ 100 mm	≦ 200 mm	≦ 100 mm	≦ 200 mm
0.10 ~ 0.55 mm.	±0.10 mm	±0.20 mm	±0.05 mm	±0.10 mm
0.55 ~ 2.00mm.	±0.20 mm	±0.30 mm	±0.10 mm	±0.20 mm

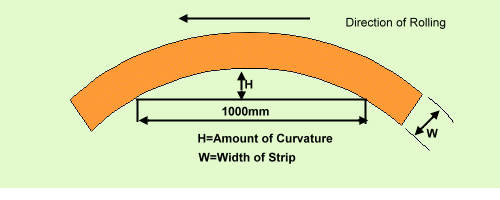

銅合金板材蛇彎度公差 (Permissible max. value on camber):

寬度Width	公差Tolerance (per 1000 mm)
over 6 mm to 9 mm inc	9 mm max.
over 9 mm to 13 mm incl.	6 mm max.
over 13 mm to 25 mm incl.	4 mm max.
over 25 mm to 50 mm incl.	3 mm max.
over 50 mm to 100 mm incl.	2 mm max.
over 100 mm	1 mm max.

* Dimensional tolerances shall be in accordance with JIS H3100

　

　
